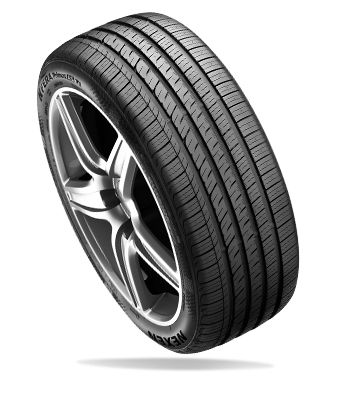

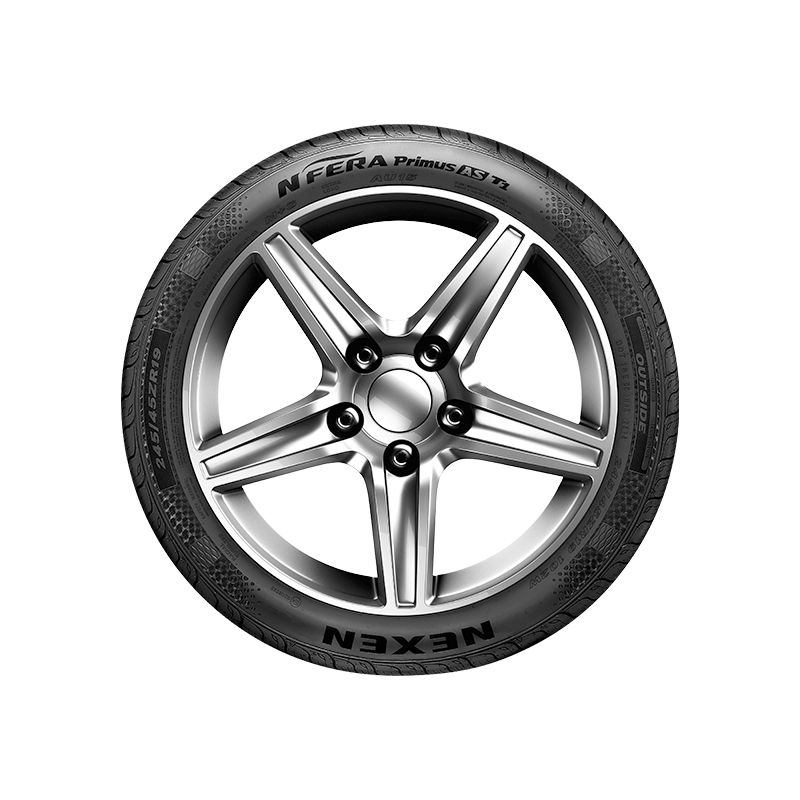

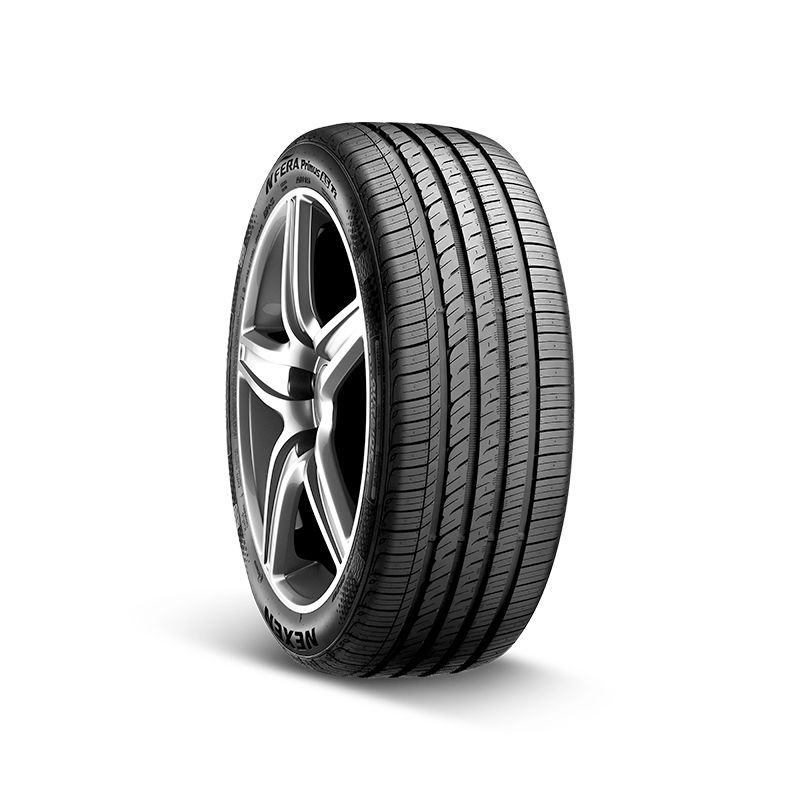

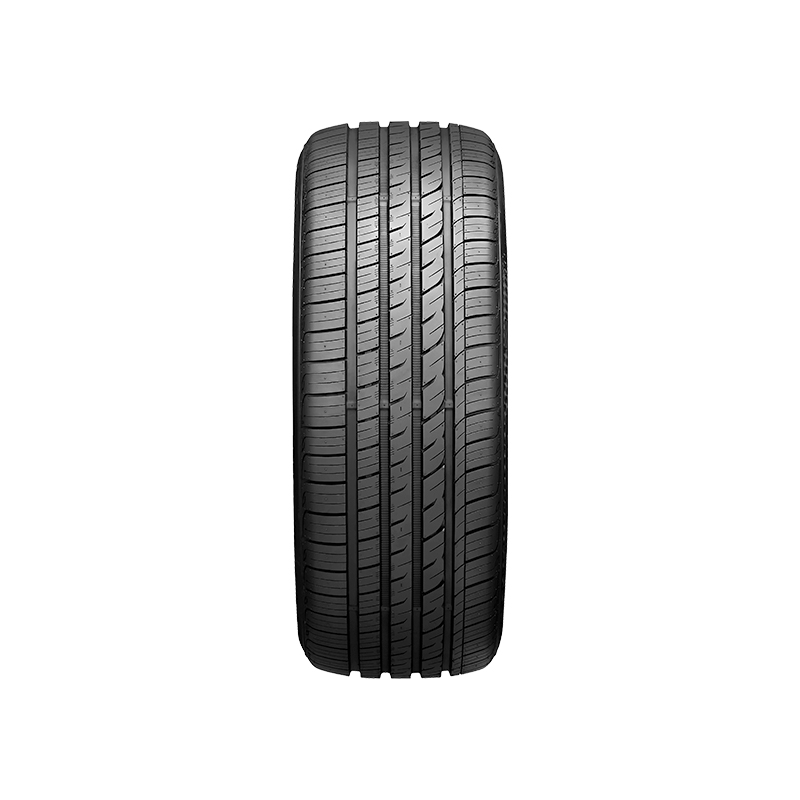

N'Fera Primus AS T1
GRAND TOURING ALL SEASON
The N'Fera Primus AS T1 combines the look of a performance tire with the comfortable, quiet ride of a passenger tire and designed for Family Sedan and CUV/SUVs that require all-year traction in dry, wet and light snow conditions.
THIS TIRE WAS DESIGNED TO PERFORM...
COMFORT
8
HANDLING
8
BRAKING
9
TREAD
9
FUEL
8
TREAD WEAR
WARRANTY
WARRANTY
65,000 mi (H and V Speed Rated) or 50,000 mi (W and Y Speed Rated)
ROAD HAZARD
WARRANTY
WARRANTY
3/32" or 2 years
ROADSIDE
ASSISTANCE
ASSISTANCE
36 Months
FREE
TRIAL
TRIAL
45 Day or 500 Miles
PRODUCT CODE
18032
SIZE
205/55R16
XL
XL
LOAD INDEX
94
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,477
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
5.5~7.5
SECTION WIDTH (INCH)
8.4
OVERALL DIAMETER (INCH)
24.9
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
18031
SIZE
205/60R16
XL
XL
LOAD INDEX
96
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,565
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6
RIM - APPROVED
5.5~7.5
SECTION WIDTH (INCH)
8.2
OVERALL DIAMETER (INCH)
25.7
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
18038
SIZE
205/65R16
XL
LOAD INDEX
95
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6
RIM - APPROVED
5.5~7.5
SECTION WIDTH (INCH)
8.2
OVERALL DIAMETER (INCH)
26.5
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
18033
SIZE
215/55R16
XL
XL
LOAD INDEX
97
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,609
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
25.3
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
18030
SIZE
215/60R16
XL
LOAD INDEX
95
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~7.5
SECTION WIDTH (INCH)
8.7
OVERALL DIAMETER (INCH)
26.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
18034
SIZE
225/60R16
XL
LOAD INDEX
98
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9
OVERALL DIAMETER (INCH)
26.6
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17182
SIZE
205/50R17
XL
XL
LOAD INDEX
93
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,433
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
6.5
RIM - APPROVED
5.5 ~ 7.5
SECTION WIDTH (INCH)
8.4
OVERALL DIAMETER (INCH)
25.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17173
SIZE
215/45R17
XL
XL
LOAD INDEX
91
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,356
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
7.0 ~ 8.0
SECTION WIDTH (INCH)
8.4
OVERALL DIAMETER (INCH)
24.6
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17183
SIZE
215/50R17
XL
XL
LOAD INDEX
95
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
6.0 ~ 7.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
25.5
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17186
SIZE
215/55R17
XL
XL
LOAD INDEX
98
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
6.0 ~ 7.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
26.3
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17175
SIZE
225/45R17
XL
XL
LOAD INDEX
94
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,477
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7.5
RIM - APPROVED
7.0 ~ 8.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
25
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17184
SIZE
225/50R17
XL
XL
LOAD INDEX
98
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
6.0 ~ 8.0
SECTION WIDTH (INCH)
9.2
OVERALL DIAMETER (INCH)
25.9
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17187
SIZE
225/55R17
XL
XL
LOAD INDEX
101
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,819
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
6.0 ~ 8.0
SECTION WIDTH (INCH)
9.2
OVERALL DIAMETER (INCH)
26.8
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19100
SIZE
225/60R17
XL
XL
LOAD INDEX
103
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9
OVERALL DIAMETER (INCH)
27.6
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17188
SIZE
235/55R17
XL
XL
LOAD INDEX
103
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7.5
RIM - APPROVED
6.5 ~ 8.5
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
27.2
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19118
SIZE
235/60R17
XL
XL
LOAD INDEX
106
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,094
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
28.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19108
SIZE
235/65R17
XL
XL
LOAD INDEX
108
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,205
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17174
SIZE
215/45R18
XL
XL
LOAD INDEX
93
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,433
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
7.0 ~ 8.0
SECTION WIDTH (INCH)
8.4
OVERALL DIAMETER (INCH)
25.6
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17163
SIZE
225/40R18
XL
XL
LOAD INDEX
92
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,389
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8
RIM - APPROVED
7.5 ~ 9.0
SECTION WIDTH (INCH)
9.1
OVERALL DIAMETER (INCH)
25.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17176
SIZE
225/45R18
XL
XL
LOAD INDEX
95
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7.5
RIM - APPROVED
7.0 ~ 8.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
25.9
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
225/50R18
XL
LOAD INDEX
95
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.2
OVERALL DIAMETER (INCH)
26.9
TREAD DEPTH (/32")
10.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
14748
SIZE
225/55R18
XL
LOAD INDEX
98
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9.2
OVERALL DIAMETER (INCH)
27.8
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19099
SIZE
225/60R18
XL
XL
LOAD INDEX
104
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,984
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
6.5
RIM - APPROVED
6.0~8.0
SECTION WIDTH (INCH)
9
OVERALL DIAMETER (INCH)
28.6
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17164
SIZE
235/40R18
XL
XL
LOAD INDEX
95
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,521
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8.5
RIM - APPROVED
8.0 ~ 9.5
SECTION WIDTH (INCH)
9.5
OVERALL DIAMETER (INCH)
25.4
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17178
SIZE
235/45R18
XL
XL
LOAD INDEX
98
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8
RIM - APPROVED
7.5 ~ 9.0
SECTION WIDTH (INCH)
9.3
OVERALL DIAMETER (INCH)
26.3
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17185
SIZE
235/50R18
XL
XL
LOAD INDEX
101
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,819
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7.5
RIM - APPROVED
6.5 ~ 8.5
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
27.3
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
14745
SIZE
235/55R18
XL
XL
LOAD INDEX
104
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,984
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
7.5
RIM - APPROVED
6.5 ~ 8.5
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
28.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
16411
SIZE
235/60R18
XL
XL
LOAD INDEX
107
SPEED RATING
H
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,149
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.4
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17165
SIZE
245/40R18
XL
XL
LOAD INDEX
97
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,609
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8.5
RIM - APPROVED
8.0 ~ 9.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
25.7
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17180
SIZE
245/45R18
XL
XL
LOAD INDEX
100
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,764
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8
RIM - APPROVED
7.5 ~ 9.0
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
26.7
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
14759
SIZE
255/60R18
XL
LOAD INDEX
108
SPEED RATING
H
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,205
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
30
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
225/45R19
XL
XL
LOAD INDEX
96
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,565
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
8.9
OVERALL DIAMETER (INCH)
27
TREAD DEPTH (/32")
13.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
14746
SIZE
235/55R19
XL
XL
LOAD INDEX
105
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,039
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
6.5~8.5
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
29.2
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17166
SIZE
245/40R19
XL
XL
LOAD INDEX
98
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,653
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8.5
RIM - APPROVED
8.0 ~ 9.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
26.7
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17181
SIZE
245/45R19
XL
XL
LOAD INDEX
102
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,874
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8
RIM - APPROVED
7.5 ~ 9.0
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
27.7
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
255/35R19
XL
XL
LOAD INDEX
96
SPEED RATING
Y
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,565
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
9
RIM - APPROVED
8.5~10.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
26
TREAD DEPTH (/32")
14.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
17170
SIZE
255/40R19
XL
XL
LOAD INDEX
100
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,764
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
9
RIM - APPROVED
8.5 ~ 10.0
SECTION WIDTH (INCH)
10.2
OVERALL DIAMETER (INCH)
27
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
245/40R20
XL
XL
LOAD INDEX
99
SPEED RATING
Y
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,709
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8.5
RIM - APPROVED
8.0~9.5
SECTION WIDTH (INCH)
9.8
OVERALL DIAMETER (INCH)
27.7
TREAD DEPTH (/32")
15.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
245/45R20
XL
XL
LOAD INDEX
103
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
1,929
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8
RIM - APPROVED
7.5~9.0
SECTION WIDTH (INCH)
9.6
OVERALL DIAMETER (INCH)
28.7
TREAD DEPTH (/32")
11.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19800
SIZE
245/50R20
XL
LOAD INDEX
102
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
1,874
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
7.5
RIM - APPROVED
7.0~8.5
SECTION WIDTH (INCH)
10
OVERALL DIAMETER (INCH)
29.7
TREAD DEPTH (/32")
12.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19121
SIZE
255/45R20
XL
XL
LOAD INDEX
105
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,039
MAX LOAD (LBS) - DOUBLE
RIM - MEASURING
8.5
RIM - APPROVED
8.0 ~ 9.5
SECTION WIDTH (INCH)
10
OVERALL DIAMETER (INCH)
29.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
19104
SIZE
255/50R20
XL
LOAD INDEX
105
SPEED RATING
V
PLY RATING
4
MAX AIR (PSI)
51
MAX LOAD (LBS) - SINGLE
2,039
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
8
RIM - APPROVED
7.0~9.0
SECTION WIDTH (INCH)
10.4
OVERALL DIAMETER (INCH)
30.1
TREAD DEPTH (/32")
9.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
PRODUCT CODE
1
SIZE
275/40R20
XL
XL
LOAD INDEX
106
SPEED RATING
W
PLY RATING
4
MAX AIR (PSI)
50
MAX LOAD (LBS) - SINGLE
2,094
MAX LOAD (LBS) - DOUBLE
-
RIM - MEASURING
9.5
RIM - APPROVED
9.0~11.0
SECTION WIDTH (INCH)
10.9
OVERALL DIAMETER (INCH)
28.7
TREAD DEPTH (/32")
16.5
TREADWEAR
600
TRACTION
A
TEMP
A
SIDEWALL
Black
Searched: Palmdale,
California 93552
